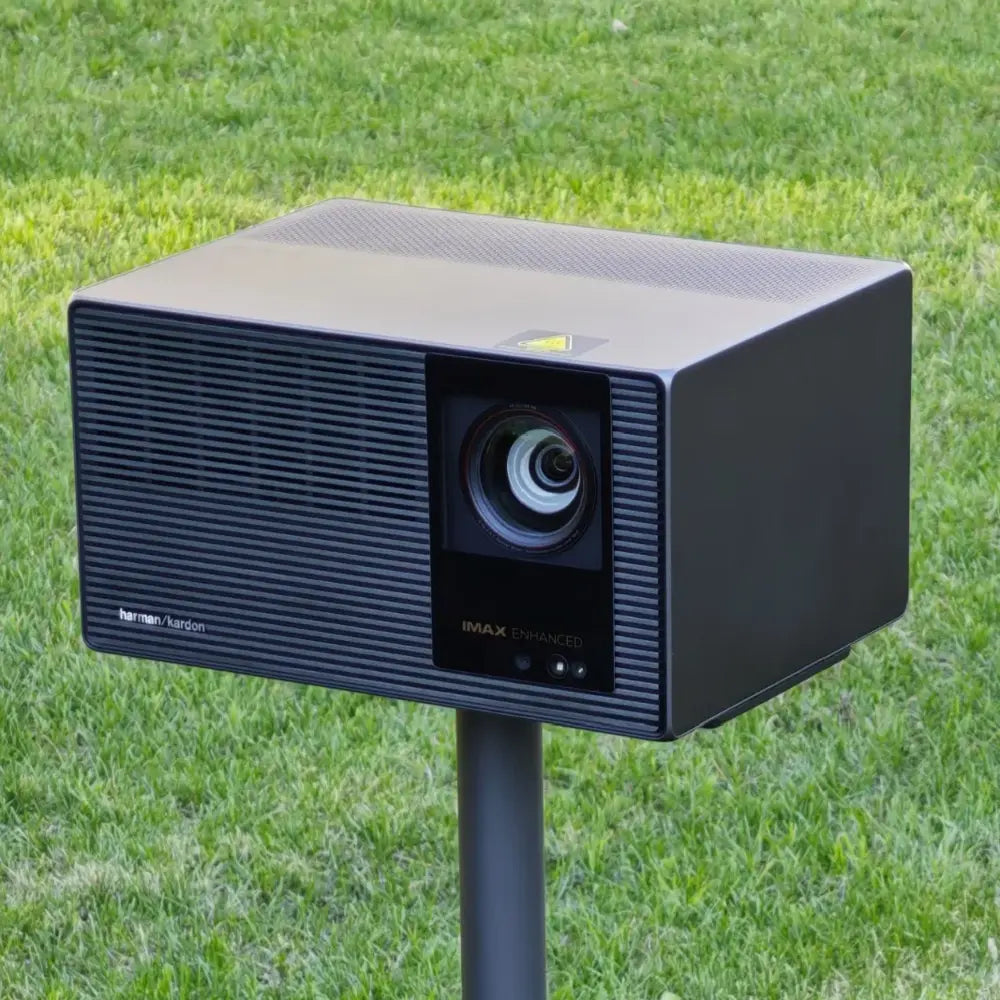

How to Set up your TITAN Noir Series 4K movie projector quickly and securely with the customized X-Floor Stand Ultra (Interface B)? This guide walks you through the complete projector stand assembly process, including cable routing, base installation, and projector mounting.

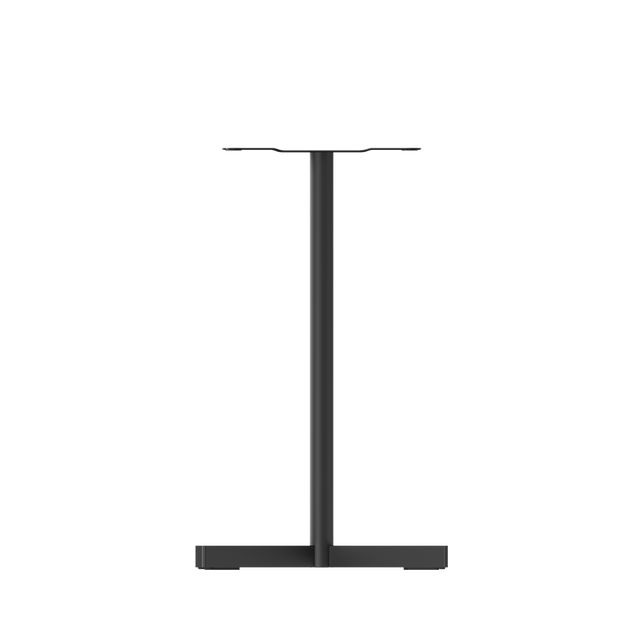

The X-Floor Stand Ultra (Interface B) is designed for XGIMI TITAN Noir Series projector, including the TITAN Noir Max, TITAN Noir Pro, and TITAN Noir. The stand provides a stable and elegant floor stand solution for home theater setups, living rooms, bedrooms, and premium entertainment spaces.
Required Items
- Floor Stand Kit
- Titan Noir Series Projector
- AC Adapter
- Screwdriver (recommended)
Kit Contents
- M5*16mm Hex Screw
- Projector Mount
- Stand Pole
- Cable Support Sleeve
- 3mm Allen Key
- 4mm Allen Key
- Base
- M5*25mm Hex Screw
- Adjustable Base Pads
Assembly Step 1: Thread Power Cable Into Cable Support Sleeve
Insert the projector power cable into the cable support sleeve before assembling the stand.
Assembly Step 2: Route Cable Through the Stand Pole
Thread the cable and sleeve into the stand pole from the bottom side and guide the cable through the cable groove.
- Note: The bottom is the side with more slits.
Assembly Step 3: Attach the Base
Slide the base into the pole’s grooves and secure it using the M5*25mm hex screws with the 3mm Allen Key.
- Note: Complete Step 2 before attaching the base. The cable end will NOT fit through once the base is installed.
- Tip: Use a small stool or support to hold the power supply during installation to avoid unnecessary strain on the power cable.
Assembly Step 4: Install the Projector Mount
Use the M5*16mm hex screws to attach the projector mount to the stand pole.
Ensure the rubber pads are facing upward to help protect the projector during mounting.
Use the 3mm Allen Key to fully tighten the screws.
Assembly Step 5: Remove the Bottom Screws from the Projector
Use the 4mm Allen Key to remove the four screws attached to the bottom of the TITAN Noir Series projector.
- Note: Keep these screws, as they will be reused in Step 6.
Assembly Step 6: Mount the Projector to the Floor Stand
Align the mounting holes on the stand with the projector and secure the projector using the original screws removed in Step 5.
Ensure the power cable faces toward the rear of the projector for proper cable management.
Assembly Step 7: Connect and Adjust the Power Cable
Adjust the cable length so it comfortably reaches the DC power jack.
The ferrite core may sit very close to the pole. This is normal and does not affect usage.
Step 8: Enjoy Your Setup
Your TITAN Noir Series projector floor stand is now fully assembled and ready to use!
