Meet Elfin, a smart home projector packed with stunning resolution, tremendous sound, and most of all, remarkable brightness, all in a compact design. With Elfin, you can project what you love in super-bright detail and make any moment in your life bigger!
See all product notes at the bottom of the page

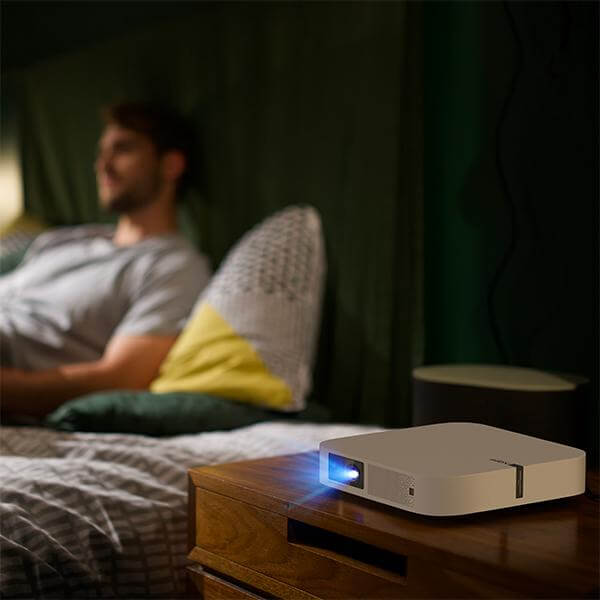

Use Elfin Anywhere
Elfin’s 1.2:1 throw ratio makes it suitable for projecting in most rooms, gyms, or offices, regardless of how small. Enjoy screen sizes between 60"-120" and supersize all your movies, video games, and little moments wherever, whenever!3
Display
Product Classification
Home projector
Standard Resolution
1920 x 1080 pixels
Display Technique
DLP
Lamp Life
25000 Hours7
Display Chip
0.33” DMD
Lens
High Light Transmission Coated Lens
Supported Formats
HDR10, HLG
3D
Yes, Frame Packing & Side by Side
Brightness
600 - 800 ANSI Lumens1
MEMC
Yes
Projection
Throw Ratio
1.2:1
Intelligent Obstacle Avoidance
Yes
Auto Focus
Yes
Projection Method
Front, Rear, Front Ceiling, Rear Ceiling
Auto Keystone Correction4
Yes
Image Size
40” - 200”2
Intelligent Screen Alignment
Yes
Audio
Speaker
2 x 3W Harman/Kardon
Dolby Audio
Yes
DTS-HD
Yes
Dolby Digital (DD)
Yes
DTS-Studio Sound
Yes
Dolby Digital Plus (DD+)
Yes
System
RAM
2GB
Mirroring Dispaly
Chromecast built-in/Airscreen
Storage
16GB8
Fast Boot9
Yes
System
Android TVTM6
Connectivity
Input Ports
DC x 1
HDMI (ARC Supported) x 1
USB x 1
WiFi
Dual-band 2.4/5GHz, 802.11a/b/g/n/ac10
Output Port
Headphone x 1 (3.5mm)
Bluetooth
Bluetooth 5.0/BLE
Electrical
Noise
Power
< 30dB11
AC100-240V, 50/60Hz
Power Dissipation
65W
Measurements
Product Size (H x W x D)
Product Weight
194.19 x 192.1 x 48.31mm12
0.9kg13
What's in the Box
Power Plug
Warranty Card
x 1
x 1
Bluetooth Remote Control
Manual
x 1
x 1
Display
Product Classsfication:Home projector
Display Technique:DLP
Display Chip:0.33" DMD
Supported Formats: HDR10, HLG
Brightness: 600 - 800 ANSI Lumens1
Standard Resolution: 1920 x 1080 pixels
Lamp Life: 25000 Hours7
Lens: High Light Transmission Coated Lens
3D: Yes, Frame Packing & Side by Side
MEMC: Yes
Projection
Throm Ratio:1.2 : 1
Auto Focus: Yes
Auto Keystone Correction4: Yes
Intelligent Screen Alignment: Yes
Intelligent Obstacle Avoidance: Yes
Projection Method: Front, Rear, Front Ceiling, Rear Ceiling
Image Size: 40” - 200”2
Audio
Speaker: 2 x 3W Harman/Kardon
DTS-HD: Yes
DTS-Studio Sound: Yes
Dolby Audio: Yes
Dolby Digital (DD): Yes
Dolby Digital Plus (DD+): Yes
System
RAM:2GB
Storage: 16GB8
System: Android TVTM6
Mirroring Display: Chromecast built-in/Airscreen
Fast Boot9: Yes
Connectivity
Input Ports: DC x 1, HDMI (ARC Supported) x 1, USB x 1
Output Ports: Headphone x 1 (3.5mm)
WiFi: Dual-band 2.4/5GHz, 802.11a/b/g/n/ac10
Bluetooth: Bluetooth 5.0/BLE
Electrical
Noise: <30dB11
Power Dissipation: 65W
Power: AC100-240V, 50/60Hz
Measurements
Product Size (H x W x D): 194.19 x 192.1 x 48.31mm12
Product Weight: 0.9kg13
What's in the Box
Power Plug: x1
Warranty Card: x1
Bluetooth Remote Control: x1
Manual: x1
Remark:
