Before You Drill
1. Identify the kit and the correct location
Lay out the decorative cover, mounting base, mounting plate, adjustable rod, and screw kit on a clear surface. Compare them with the supplied instructions and video. Do not replace supplied structural fasteners with an assumed generic equivalent.
Check the mounting location against the projector's intended image size, throw distance, cable reach, ventilation clearances, and available ceiling structure.
A position centered on the screen will usually need less image correction than one far to the side, but the actual location must follow the projector's projection geometry and the mount instructions.
Before drilling, identify any electrical wiring, pipework, or other concealed services. The original guide shows six base fixing points and different drill sizes for its two hole groups; those details are kit-specific, not universal ceiling-mount advice.
Confirm that the supplied anchors are appropriate for the actual ceiling material and load. If that cannot be established, do not continue. Keep the power adapter unplugged while routing cables.
| Item | Quantity |
| Decorative Cover | 1 |
| Mounting Base | 1 |
| Mounting Plate | 1 |
| Adjustable Rod | 1 |
| Screw Kit | 1 |
2. Make room to work safely
Arrange help to support the projector during attachment. Do not try to hold a heavy projector and turn a locking part at the same time. Position a stable work platform and keep the floor below clear. Check the current XGIMI installation video alongside the written steps, especially where the rod lock and adjustment knob are shown from different angles.
Install the Mounting Base and Route Power
1. Fix the base
Hold the mounting base flat against the selected ceiling surface and mark every required fixing point using the base as the template. The original TITAN Noir instructions specify four 8 mm holes in one group and two 6 mm holes in the other, with the supplied expansion bolts. Treat those measurements as instructions for this kit only. Confirm the ceiling substrate and supplied fasteners are compatible before using them; do not transfer these hole sizes to another mount. After fastening all six points, verify the base sits flush and does not shift under a careful manual check. If it moves, stop before attaching the projector.
Route the unplugged adapter and cable
With power disconnected, lay the adapter where the guide specifies, secure the cord with the supplied tie, and pass it through the rubber grommet. Make sure no cable is pinched, sharply bent, or pulled across a fastener. Fit the magnetic decorative cover only after confirming the cable path. Keep access to the power connection for the final test.
Attach the Rod and Projector Plate
Align the adjustable rod's notch with the mounting plate slot and tighten the specified hex screw with the supplied tool. Check that the rod is seated without wobble.
For the TITAN Noir projector configuration described by XGIMI, remove the original floor stand using the large hex key and retain its four screws. Align the mounting plate with the stand's original screw holes, reuse those four screws as directed, and tighten evenly.
Do not substitute a screw with an unknown length: a wrong fastener can fail to secure the plate or damage the projector.
Have a second person support the projector while you inspect the plate and rod connection. The original article's gentle movement check is a check for obvious looseness, not a load certification. If any component rocks, stop and recheck assembly before lifting it to the ceiling.
The TITAN Noir Max product page is the existing XGIMI product reference in the source article; verify your exact model and accessory match before following its product-specific stand step.

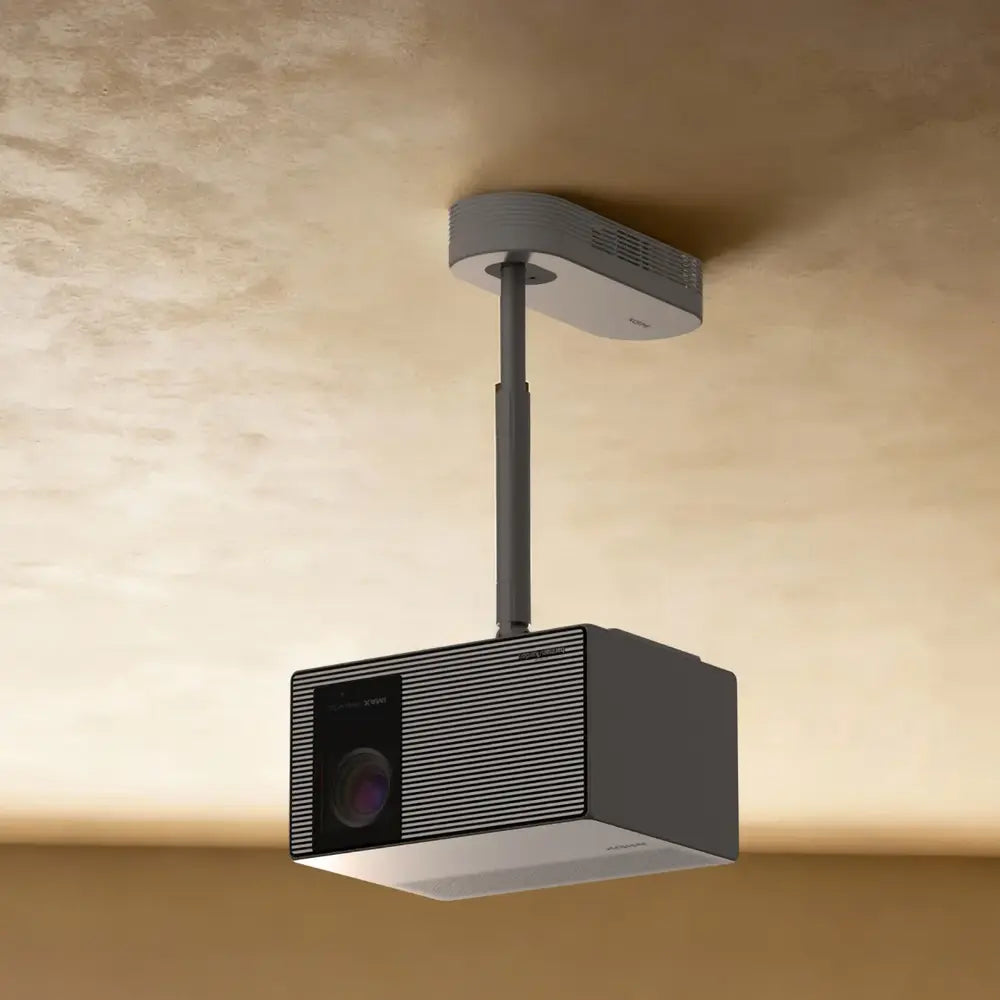

Lock the Projector to the Ceiling and Align the Image
With the plate secured and the projector supported, loosen the rod knob and extend the rod as described in the original guide. Align the rod's lower notch with the tab on the ceiling base, then turn it counter-clockwise until the connection is fully locked. Recheck engagement before the supporting person lets go.
To change height, loosen the connecting knob in the direction shown by the guide, slide the rod, and retighten it firmly. Never adjust height while leaving the projector unsupported.
Use the mount's intended tilt mechanism for small alignment changes. Do not loosen the tilt adjustment hex screw during normal use; the original XGIMI article explicitly warns that it must remain tight.
Align the projected image with the screen using the physical mount first, then use the projector's image adjustments only as needed. Confirm that the projector remains stable at the final height and angle and that no cable becomes taut through the adjustment range.
Final Safety and Picture Check
Check every fastener and locking point described by the kit instructions, the decorative cover, cable clearance, and projector ventilation. Only then connect power and show the projector's menu. Recheck image placement, focus, and audio from the normal viewing position.
The original XGIMI guide says to allow ten minutes before first use; keep that instruction with the kit and do not represent it as proof of mounting strength.
If you need the floor-standing version instead, use XGIMI's TITAN Noir floor-stand assembly guide.
FAQs
1. Can I use these drill sizes for any projector ceiling mount?
No. The hole sizes and six-point base pattern come from this TITAN Noir Series kit. Check the exact mount instructions and ceiling material before drilling, and use a qualified installer if the structure is uncertain.
2. When should I adjust the projected image?
First confirm that the mount is fully locked and supported. Then set the physical height and tilt with the intended controls before applying the projector's digital image corrections.
3. Can I loosen the tilt hex screw to gain more angle?
No. The source instructions warn against loosening that screw during normal use. If the available adjustment does not place the image correctly, revisit mounting position or consult XGIMI support rather than defeating the locking mechanism.
