Lamp, LED And Laser Light Source For Projectors

By XGIMI Tech - 2022-01

The Importance of A Light Source In A Projector

The light source in a projector affects features like projector brightness, image colors, projector lifespan, energy consumption, etc. Common projector light sources include lamp, LED, and laser.

How do these light sources work? What are their differences? And what advantages and disadvantages do they have? Read on to learn the different light sources and their features, how each is different from the others, and how they perform when used in projectors.

Metallic Halide And Mercury Vapor Lamp - The Oldest Light Source

The High-Intensity Discharge (HID) lamp is the oldest of the light sources used in projectors. Invented in the 1960s, the HID lamp uses rare earth metal salts combined with mercury vapor to produce light.

One advantage of the lamp source is the high brightness it provides. However, it has a high cost of operation as it's very power-consuming when generating its high brightness. Meanwhile, it contains mercury, which is not environmentally friendly and needs extreme caution when disposing.

In the 1990s, the lamp got a makeover with the introduction of the ultra-high performance (UHP) lamp. The UHP lamp offered a much higher efficiency as compared to the earlier lamp. However, the effective brightness of the UHP lamp degrades from the first day it's used, and it will become darker over time.

Overall, the pros and cons of both HID lamps and UHP lamps are:

Pros:

  • They cost less when compared to LED or laser light sources in projectors.
  • They provide good light quality.
  • They provide high brightness.

Cons:

  • As both lamps generate great heat and need space for cooling, the projectors are usually larger than LED or laser models.
  • They have a short lifespan of about 3,000 hours and need to be replaced much sooner than the other types.
  • They contain mercury in their bulbs and thus need extra caution when using and disposing of.

The More Efficient LED-Based Lamp

Light Emitting Diode (LED) serves as a light source, an alternative to HID and UHP lamps. LED light source uses the properties of semiconductor to emit light when current flows through it.

There are several features that you would like to know about LED-based projectors:

Pros:

  • It has a lifespan of about 20,000 - 50,000 hours and lasts much longer than lamps.
  • It doesn't generate as much heat as lamps, which means it needs a smaller space for cooling. Thus, the projector size can be much smaller, quieter, and more compact.
  • It can be switched on and off with low delay when compared to the lamps.
  • It requires less electrical power.
  • It contains no mercury, which is more environmentally friendly.
  • It costs less than a laser-based projector.

Cons:

  • It may deliver lower brightness compared to a lamp light source.
  • It produces blue light, which may lead to eye strain if used for long periods without rest.

The New Standard in Light Source for Projectors - Lasers

Laser is short for ‘light amplification by stimulated emission of radiation.’ It can produce a narrow beam of monochromatic light that can be directed anywhere. A laser-based projector uses high-power red, green, and blue lasers to create an image.

Some features of a laser projector are:

Pros:

  • It has much less wasted light compared to the lamp and LED projectors. Thus, it delivers great image quality and better contrast.
  • It has a wider color range, delivering deeper, richer, and more lifelike colors.
  • It produces higher brightness than LEDs.
  • It has a long lifespan of 30,000 to 50,000 hours.
  • It requires little maintenance.
  • It has low energy consumption and less wasted light.

Cons:

  • It usually costs more than lamps and LEDs.
  • It's larger and heavier than LED-powered projectors.

Now that you understand the features of different types of light sources for projectors, we recommend the following two XGIMI projectors for your home to enjoy the movies on a large screen.

XGIMI projector provides a safer view

Product Recommendations

XGIMI AURA 2 (Ultra-Short Throw Laser Projector with Dual Light 2.0)

  • Dual Light 2.0 of Dual Laser+Phosphor for UST delivers crisp 4K UHD videos and images
  • Watch 4 hours a day for about 13 years (a 20,000-hour lifespan)
  • 2300 ISO Lumens
  • Effortlessly switch screen sizes from 80'' to 150'' for razor-sharp theater image
  • IMAX Enhanced(OTA), Dolby Vision, and HDR10, HLG provide advanced illumination and astonishingly rich color
XGIMI AURA 4K Projector in black and silver with brushed metal top and perforated speaker grilles.
XGIMI AURA 4K projector in black and silver with sleek curved top and vented sides, showcasing product appearance.
XGIMI AURA 4K projector in silver and black with curved top and speaker grilles, showcasing sleek design.
XGIMI AURA projector in black with silver top, showcasing sleek, modern design for home theater setup.
XGIMI AURA 4K projector in black and silver, showcasing ports and modern design for home theater.
XGIMI AURA 4K Projector in black and silver with brushed metal top and perforated speaker grilles.
AURA
XGIMI AURA 4K projector in black and silver with sleek curved top and vented sides, showcasing product appearance.
XGIMI AURA 4K projector in silver and black with curved top and speaker grilles, showcasing sleek design.
XGIMI AURA projector in black with silver top, showcasing sleek, modern design for home theater setup.
XGIMI AURA 4K projector in black and silver, showcasing ports and modern design for home theater.

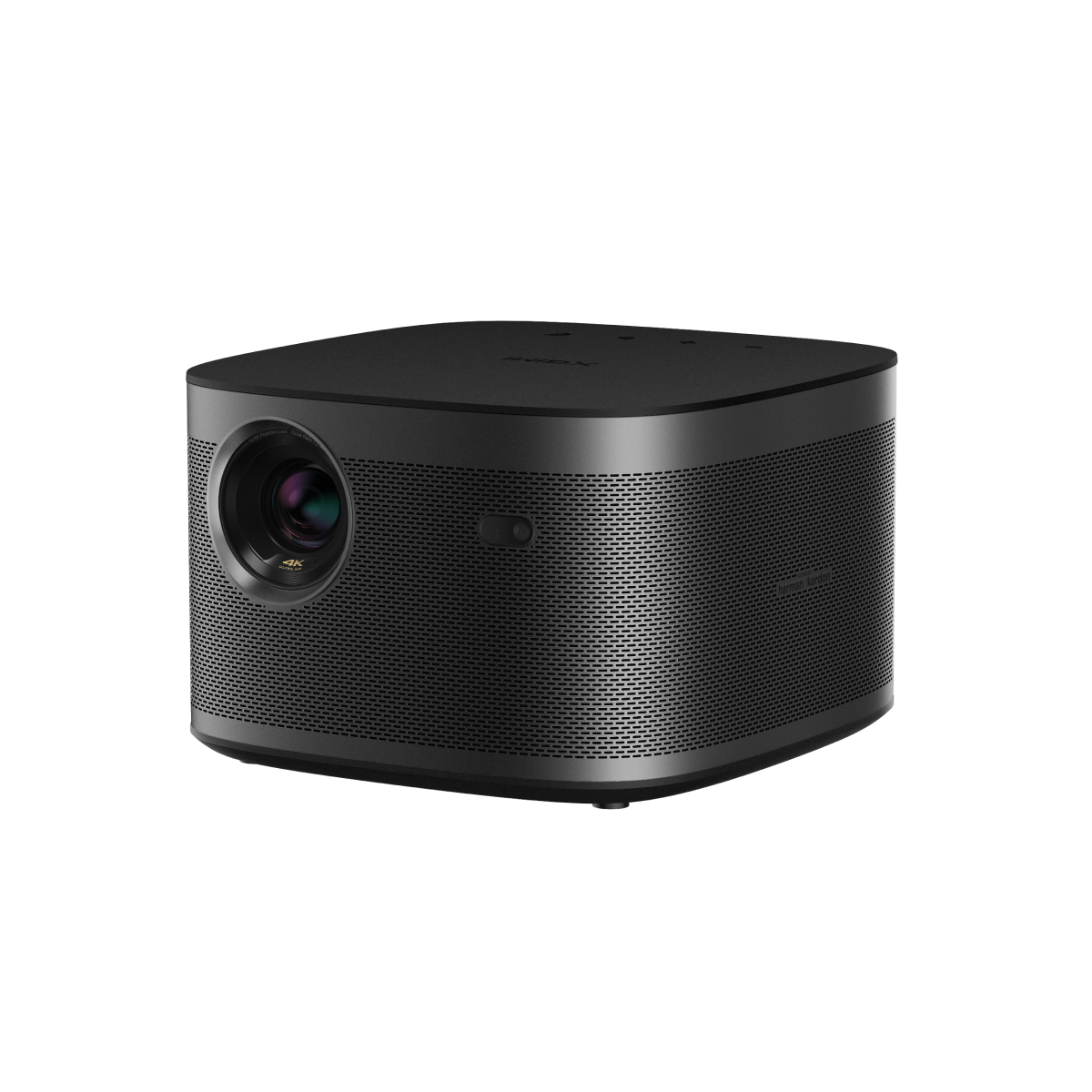

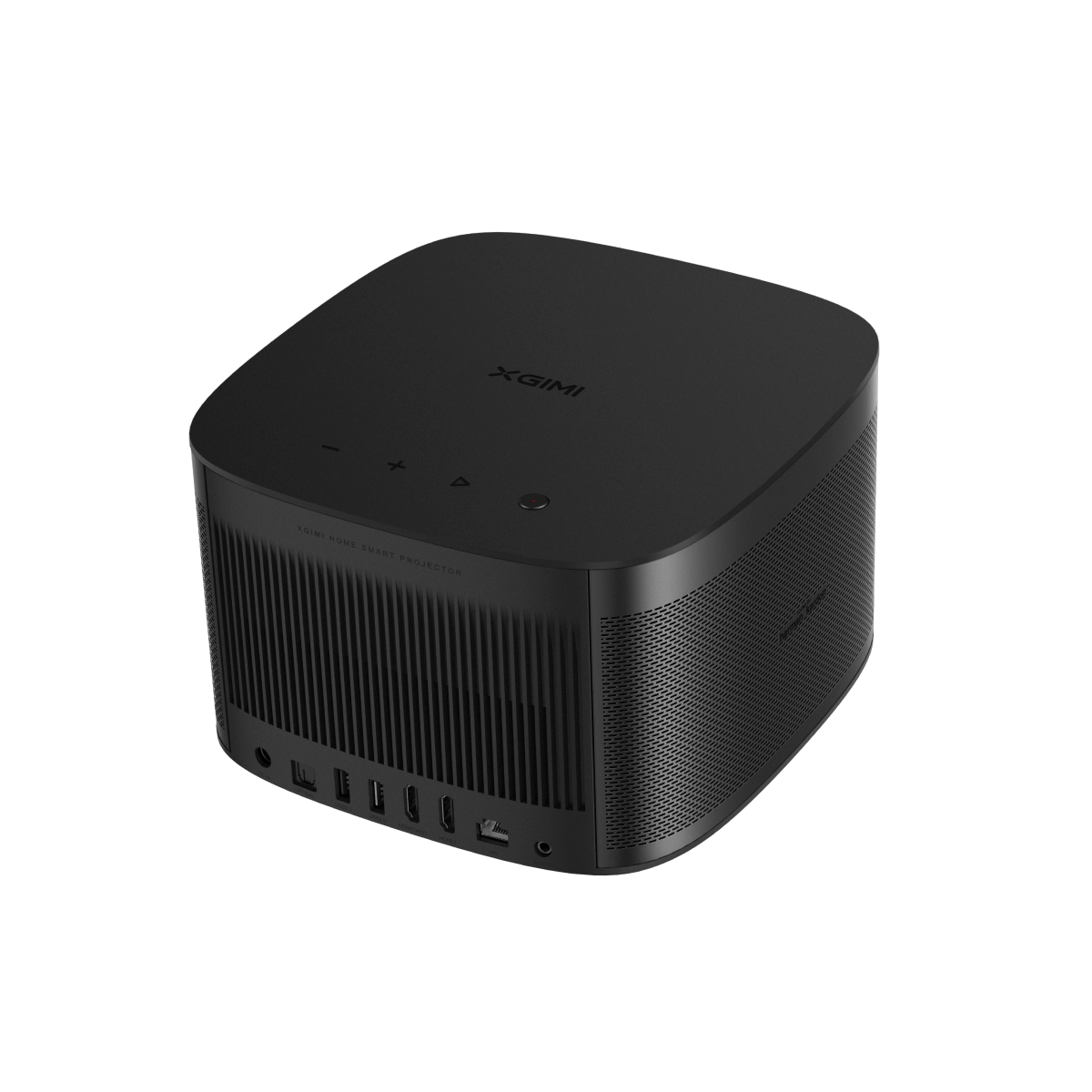

XGIMI Horizon Pro (Long Throw LED Projector)

  • LED-based, delivers breathtaking 4K UHD displayed
  • Watch 4 hours a day for 20 years (a 30,000-hour lifespan)
  • 1500 ISO Lumens
  • Place 13 feet from any wall and project a 150" razor-sharp theater screen
  • ISA Technology: autofocus, auto keystone correction, auto screen alignment, and auto obstacle avoidance.
  • Android TV™ with more than 5000 apps like HULU, Disney+, etc.
HORIZON Pro 4K projector with circular lens and textured grille on white background, product appearance.
XGIMI HORIZON Pro 4K projector with circular lens and textured grille on white background, product appearance.
XGIMI HORIZON Pro 4K projector side view showing multiple ports and Harman Kardon speaker grille.

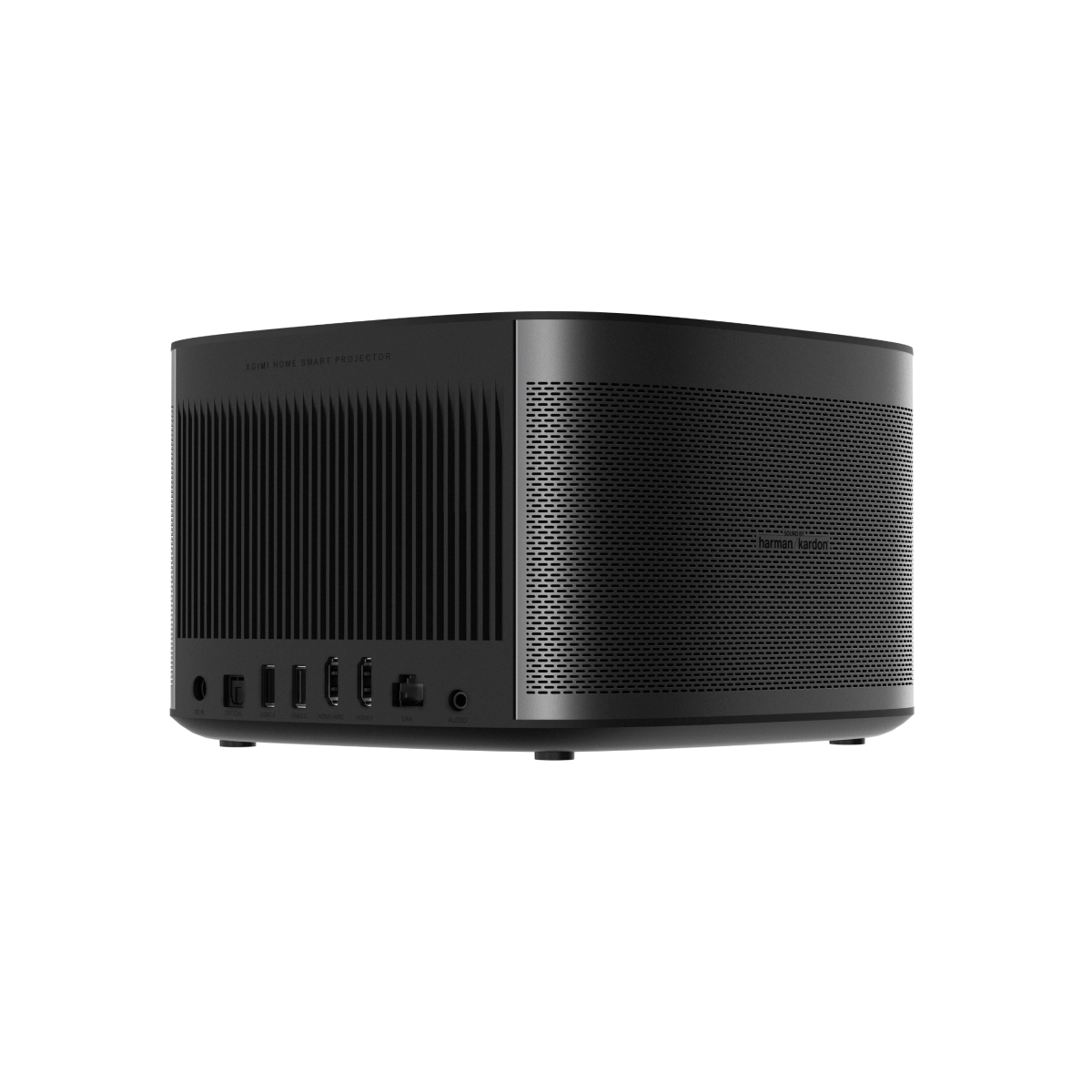

XGIMI HORIZON Pro 4K projector rear view showing HDMI and USB ports with Harman Kardon speaker grille.
HORIZON Pro 4K projector with circular lens and textured grille on white background, product appearance.
XGIMI HORIZON Pro 4K projector with circular lens and textured grille on white background, product appearance.
XGIMI HORIZON Pro 4K projector side view showing multiple ports and Harman Kardon speaker grille.
XGIMI HORIZON Pro 4K projector rear view showing HDMI and USB ports with Harman Kardon speaker grille.
HORIZON Pro

Factors to Consider When Selecting a Light Source for Projector

Choosing the right light source for your projector is crucial to ensure optimal performance and meet your specific needs. Here are several key factors to consider when selecting a light source:

1. Brightness Requirements
2. Color Accuracy and Image Quality
3. Lifespan and Maintenance
4. Energy Efficiency
5. Heat Generation
6. Cost Considerations
7. Application Specifics

By considering these factors, you can make an informed decision when selecting a light source for your projector. Assess your specific needs, preferences, and usage scenarios to determine the most suitable light source that will deliver the desired brightness, image quality, lifespan, energy efficiency, and cost-effectiveness for your projector setup.
